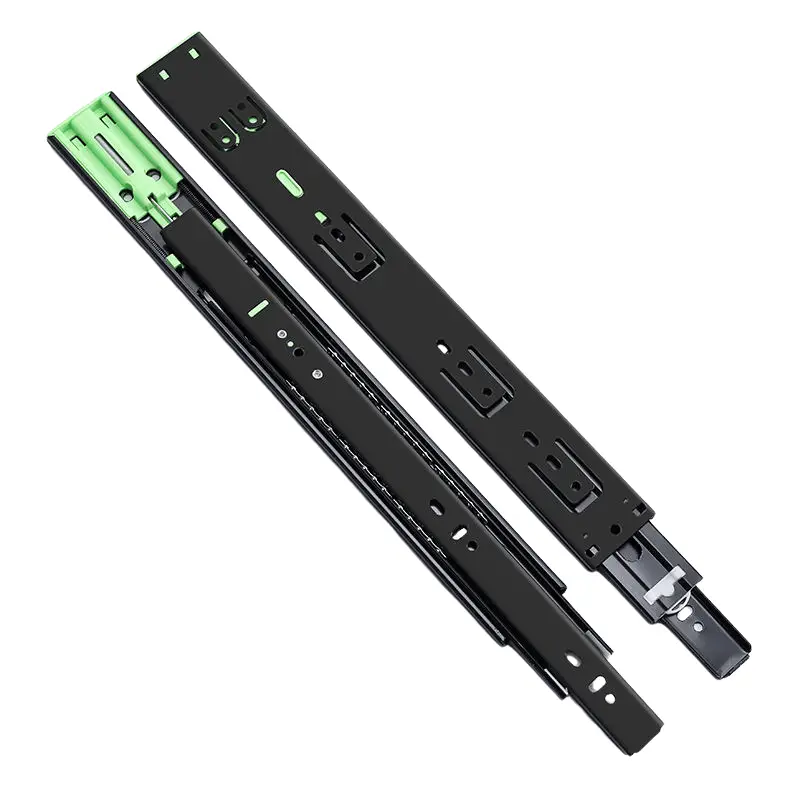

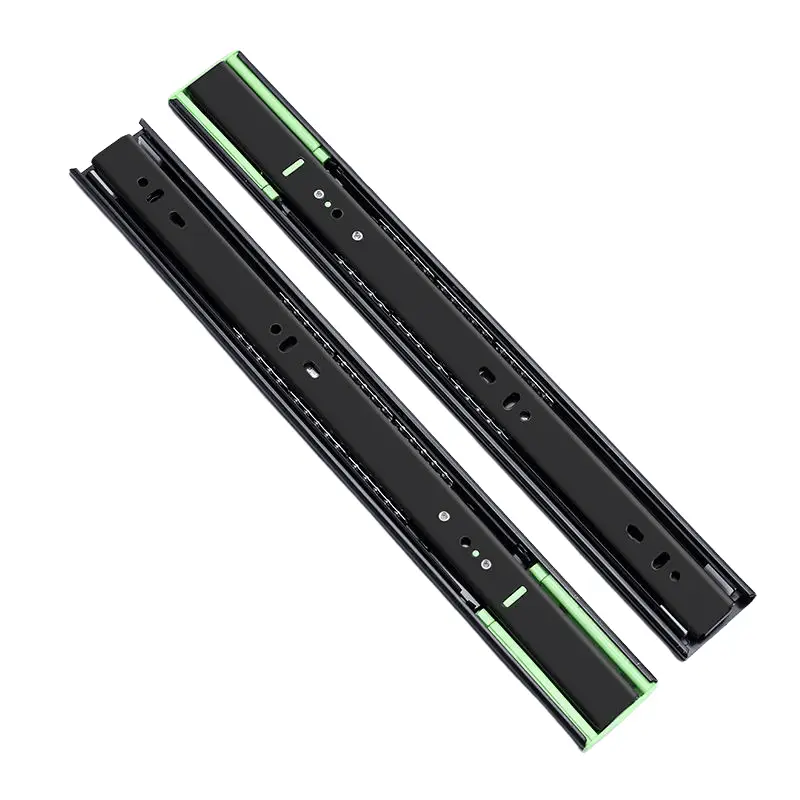

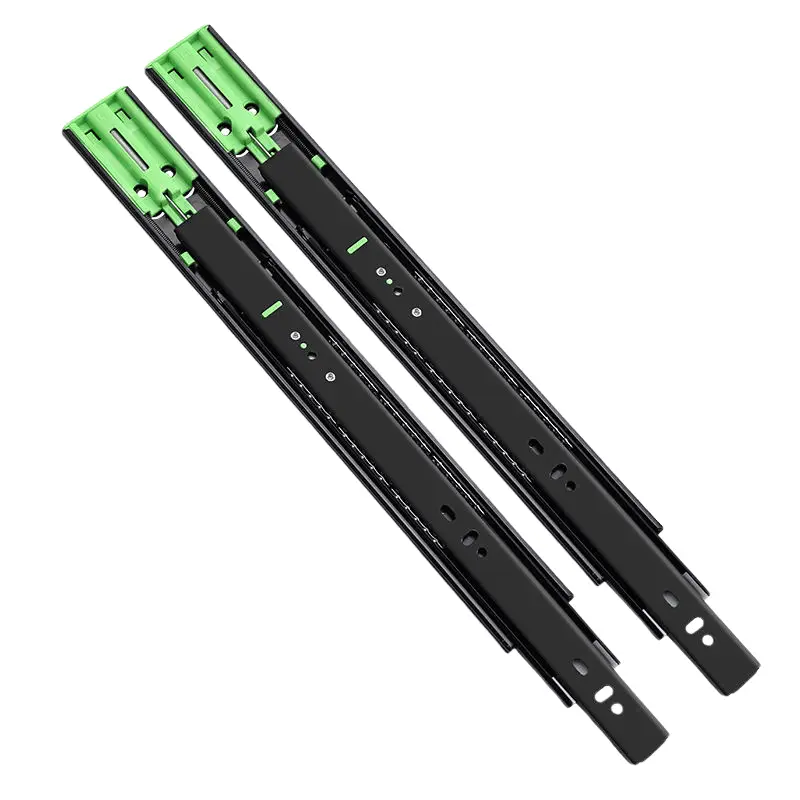

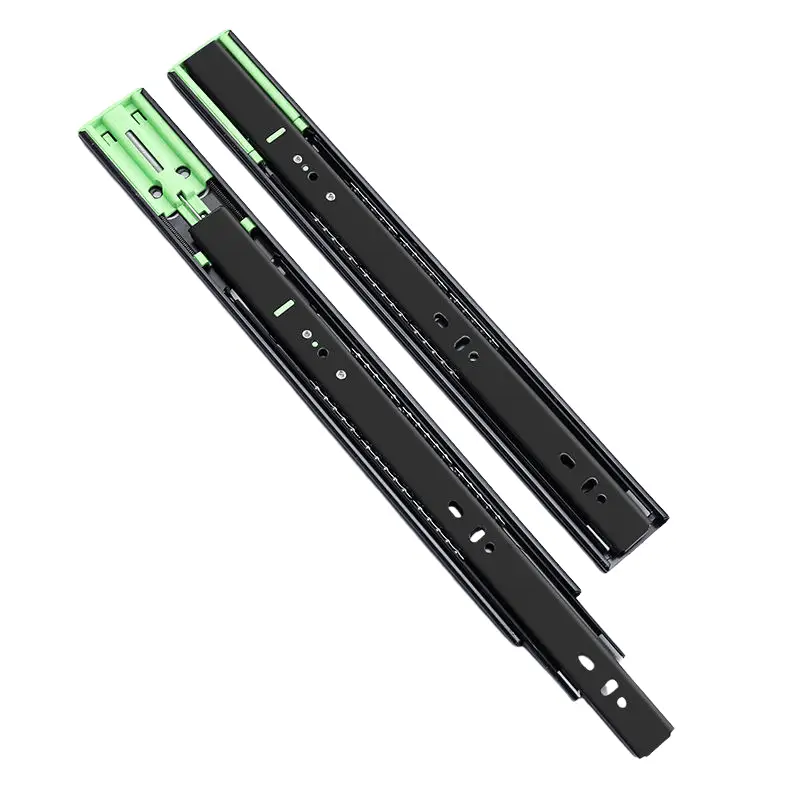

DGSM003 Soft Close Side Mount Cabinet Drawer Slide in Cold Rolled Steel
- Item Number: DGSM003
- Finishing: Cold Rolled Steel
- Optional Length: 10″ / 12″ / 14″ / 16″ / 18″ / 20″ / 22″ / 24″
- Width: 45 mm
- Thickness: 1.2 x 1.2 x 1.4 mm
- Loading Capacity: 45 KG / 450 mm (18″)
- Feature: Strong Carrying Capacity / Smooth
- Special Function: Soft Closing
- Installation: Side Installation 12.5 ± 0.2 mm
- Type: Drawer Runner
- Color: Black
About This Product
Our side mount drawer slide is a versatile and reliable solution for all your drawer needs. This innovative slide comes with a three-fold track, allowing for full extension and convenient access to your goods. Whether you require a single extension with a two-fold track or the full extension design, the Drawer Slide is built to meet your specific requirements. With its integrated silent system and soft-closing mechanism, this slide ensures that your drawers close gently and quietly.
Highlights
- Three-fold track for full extension and convenient access
- Silent system for quiet and gentle drawer closure
- Integrated soft-closing mechanism for added convenience

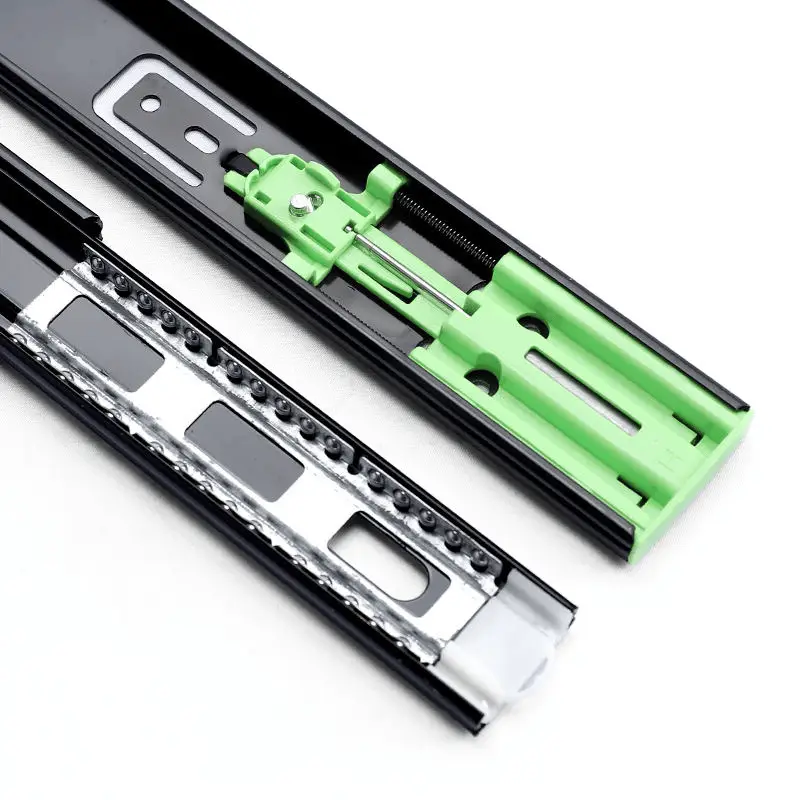

- High-quality solid metal ball bearings for smooth operation
- Multiple ball options for customizable performance (2 – 5 balls)
- Made of high-quality cold-rolled steel or for durability
- Galvanized or painted surface for enhanced texture and protection
- Pom material for superior wear resistance
- Balance hole position for improved load capacity
- Strong load-bearing capacity of up to 100 lbs
- Durable fall protection for heavy use
- Build with user-friendly design and easy installation process
| Size | 10″ | 12″ | 14″ | 16″ | 18″ | 20″ | 22″ | 24″ |
| Length NL/mm | 254 | 304 | 354 | 404 | 454 | 504 | 554 | 604 |
| Drawer Length DL | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Minimum Cabinet Depth | 270 | 320 | 370 | 420 | 470 | 520 | 570 | 620 |
| Packing (set)/carton | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
